Dimensioned spec sheets and assembly drawings for Apollo's retractable screen doors, PowerScreen systems, and the Athena motorized screen door: rough openings, mount details, hardware, and sill adapter profiles.
9 documents across 3 product lines. Click any drawing to preview, or download the print-quality PDF.
Exploded assembly view: housing, rail, pull bar, handles, and hardware for a single retractable screen door panel.
Exploded assembly view for a two-panel (double) retractable screen door configuration.
Cross-section profiles for all 7 sill adapter types: Out, Round, 2-inch, Brake, His, Decolume, and 5-inch.

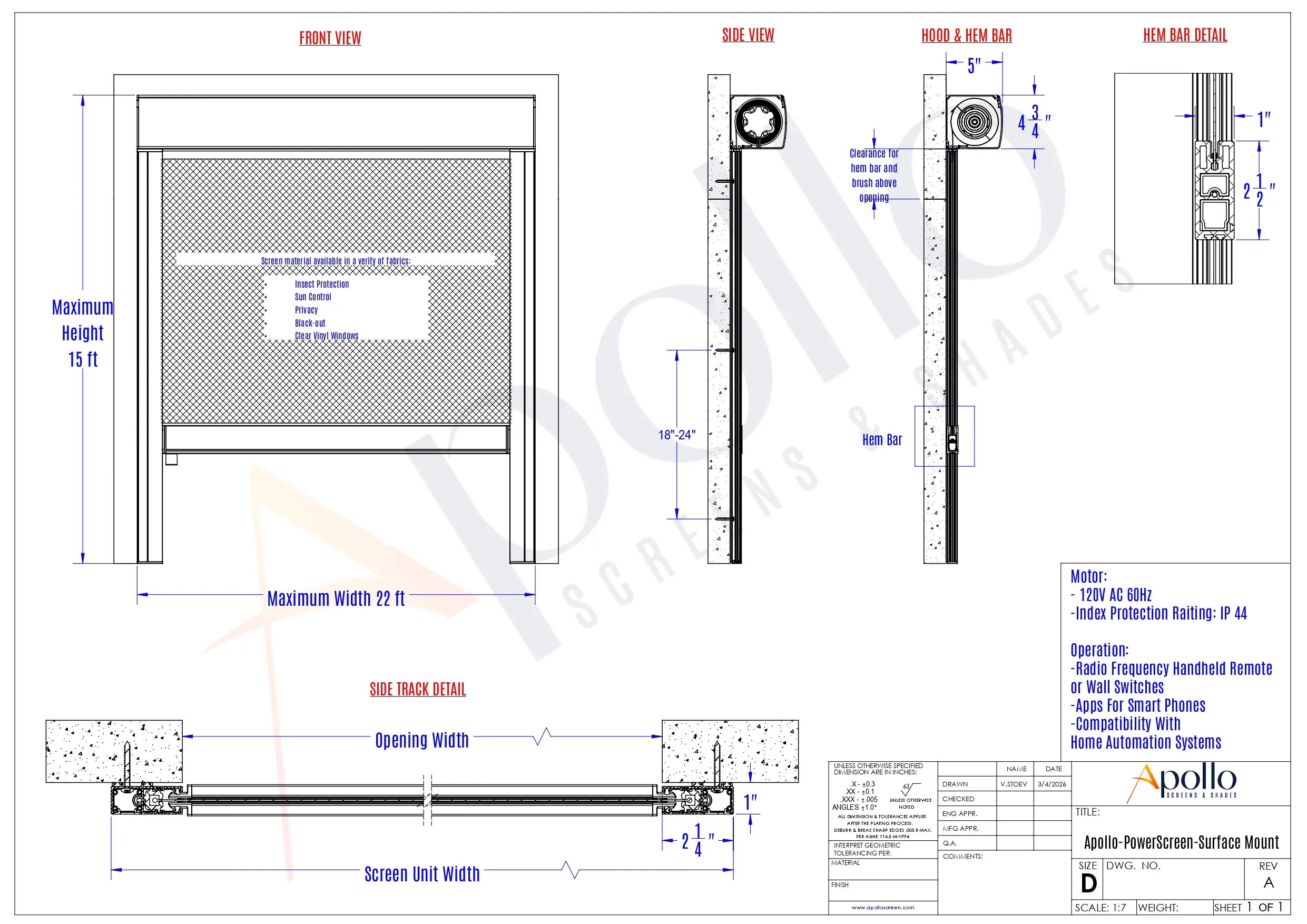

Front, side, and hood/hem-bar views with motor specs and max dimensions (22 ft W x 15 ft H) for surface-mounted installs.
Companion spec sheet covering the same PowerScreen system in metric units.
Minimum rough-opening clearances (2¼" x 1½") for the recessed side-track mount.

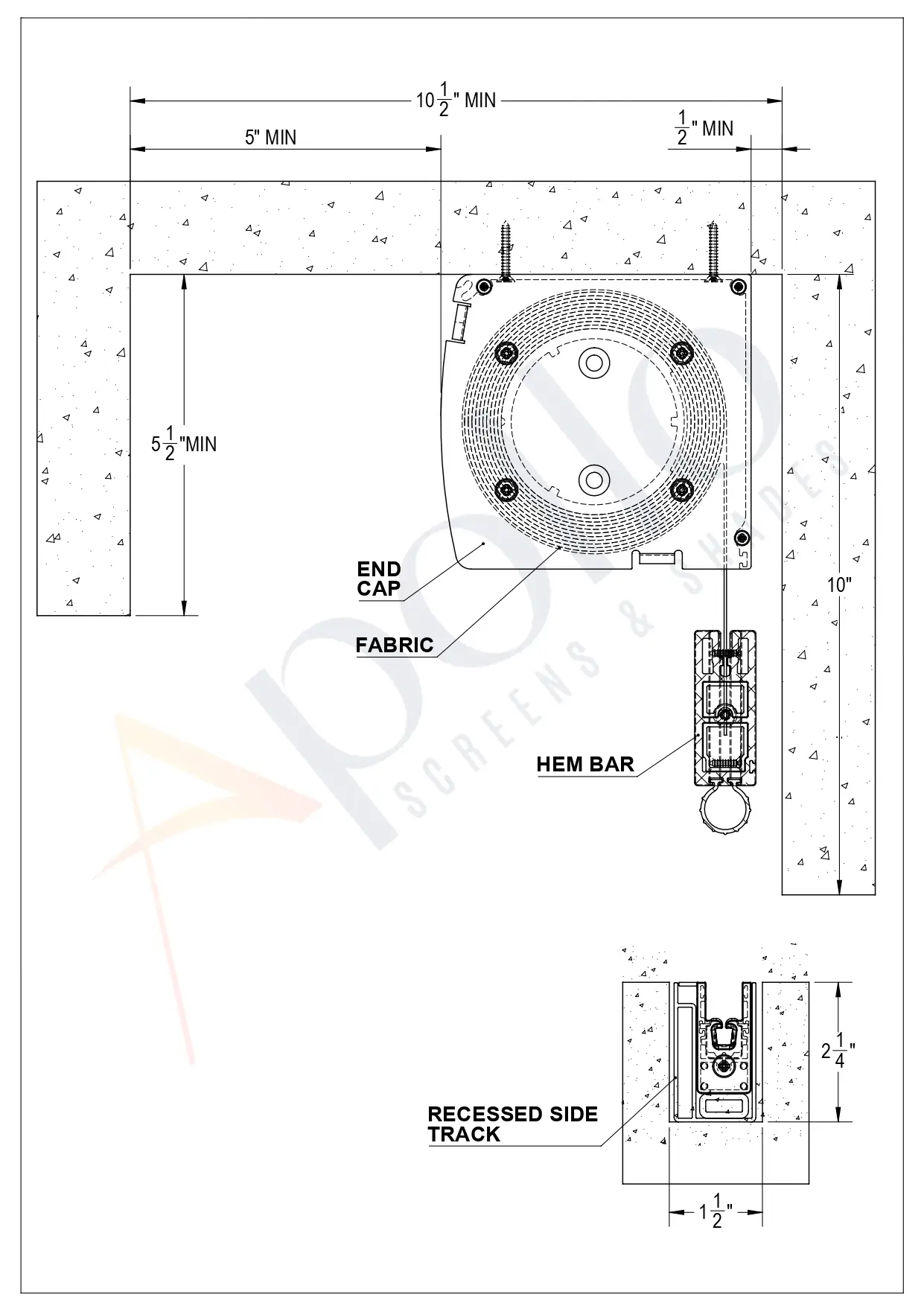

End cap, fabric roll, and hem bar detail for the recessed track configuration.
Mount bracket dimensions and hardware detail for recessed-track installations.

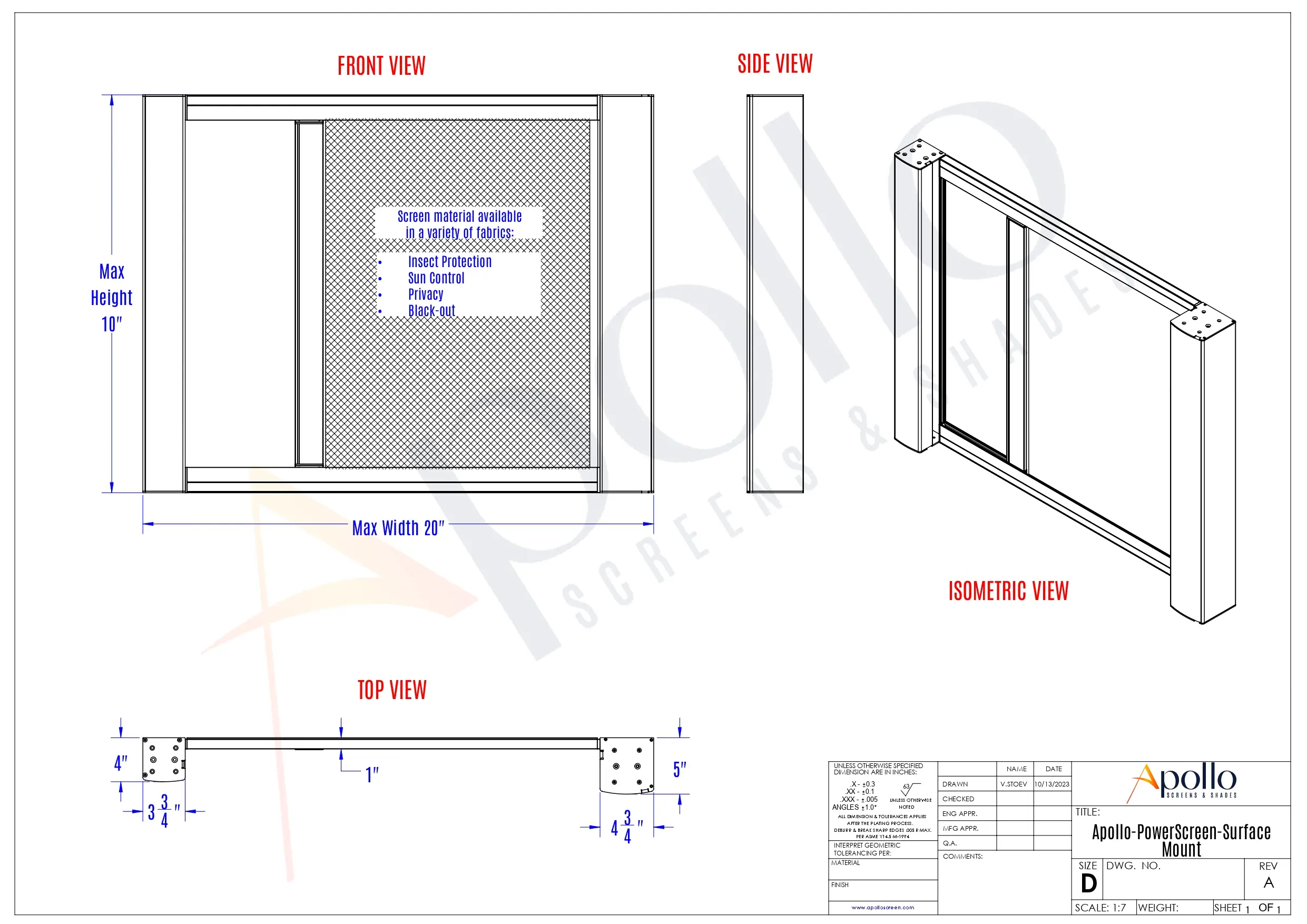

Front, side, isometric, and top views with mounting bracket dimensions for the Athena motorized screen door.
